This bracket is manufactured to the highest standards with full welds. The raw materials used in the manufacturing of this bracket are:
1. mild steel angle iron, measuring 40mm x 40mm x 3mm
2. mild steel flat, measuring 30mm x 6mm
The bracket is also finished with hot dipped galvanising.

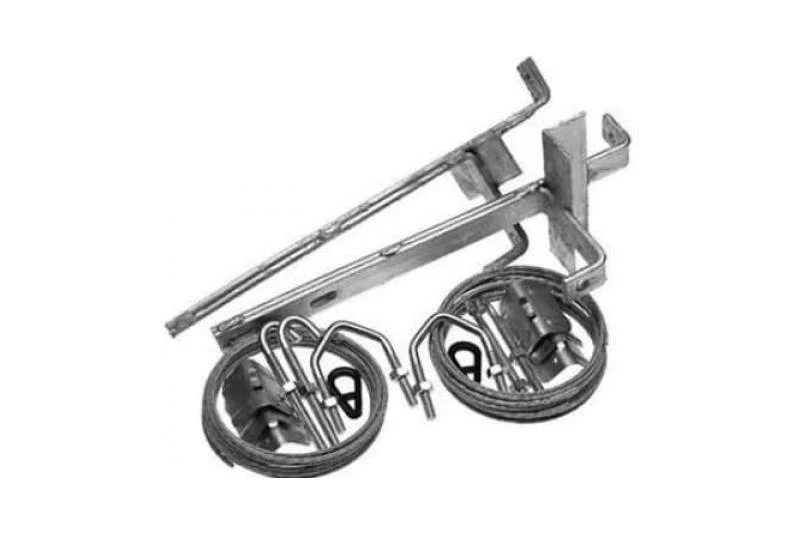

LIST OF COMPONENTS
2x Double lashing brackets special, 12inch stand off, galvanised
2x 17foot lashing wire
4x J bolts
2x 2inch V bolts
6x Corner plates
2x Plastic eye

MAXIMUM CAPACITIESThis bracket has maximum mast size of 20foot {6metre approx} It is manufactured to use 2inch V bolts for up to 2inch diameter masts. The bracket can also use 3inch V bolts, which allow the use of 3inch diameter masts or 2inch plastic grommets with aluminium masts. The bracket allows a maximum clearance of 8inch from chimney to mast when using 2inch V bolts.
