TRIAX TDS80A 80cm Solid Dish Steel
TDS 80A RAL 7016, singlepack
TRIAX TD Dishes The difference is clear
Manufactured and tested to the highest standards of precision and quality, TRIAX’s easy-to-install dishes offer outstanding performance, durability and reliability.
TDS: Steel TDA: Aluminium
- Unrivaled build quality, whether Steel or Aluminium
- Hot-dip galvanized steel OR long lasting Aluminium - for extra corrosion protection
- TRIAX’s unique cable protection system
- Every part, every accessory is weatherproofed
- 2 years corrosion warranty
- 5 years functionality warranty - Outstanding performance
- High gain for an exceptional signal - Quick and easy installation
- One-click mounting system
- Self-locking screw & nuts - Logistic friendly
- Single or Bulk packaging, according to customer needs
TRIAX is your reliable partner, with comprehensive service and support.
Click here to see our guide on how to install TRIAX satellite dishes.
ORDER INFORMATION
| EAN Number | 5702661205088 |
MECHANICAL
| Height (cm) | 79 cm |
| Width (cm) | 71 cm |
| LNB holder | 40 |

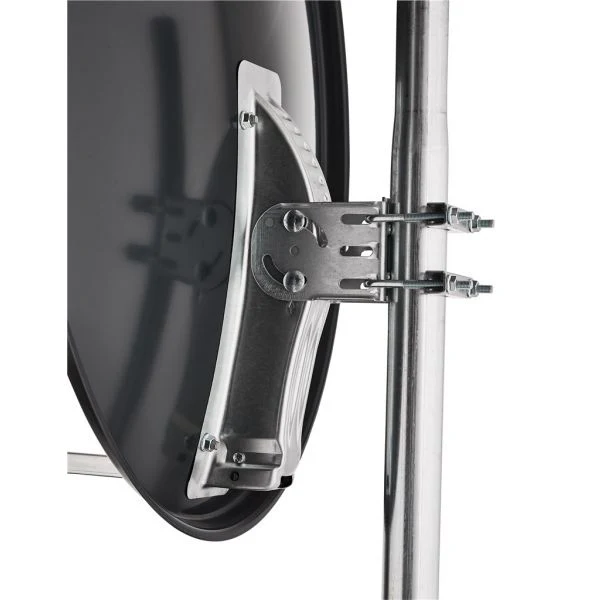

| Mast bracket diameter | 32...60 mm |
| Reflector type | Offset |
| Beamwidth | 2.6 ° |
| Windload @42 m/s | 619 N |
| Main material | Galvanized steel (hot-dip) |
| Arm Colour | Raw |
| Colour | RAL 7016 - Anthracite grey |
| Packing QTY | 1 |
| Packaging Height | 0.870 m |
| Packaging Width | 0.832 m |
| Packaging Depth | 0.100 m |
| Packaging Volume | 0.072 m3 |
| Net Weight | 4.210 kg |
| Tara Weight | 1.390 kg |
| Total Weight | 5.600 kg |
FREQUENCY RANGE
| Frequency range | 10.7...12.75 GHz |
GAIN
| Gain @ 11.7 GHz | 37,5 dBi |
CHARACTERISTICS
| F/D ratio | 0,62 |
| G/T LNB 0.7 | 17.3 dB/K |
| X-polarisation | ≤ -27 dB |
| Offset angle | 25.6 ° |
| Elevation range | 0...90 ° |
Info and Brochures
- Data Sheet
- Declaration of Conformity
- EN-Triax Satellite dishes - 6 pages [08-2019] -screen.pdf
- UK - TRIAX Satellite dishes.pdf
- Mounting instruction TDx65-TDx80-TDx100 A [01-2019].pdf
- Side drawing.pdf
