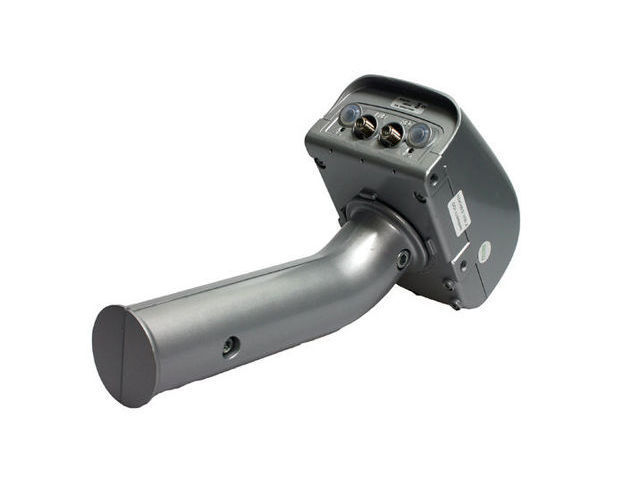

Amiko DM2400 H-H DiSEqC Motor

Amiko DM2400 H-H DiseqC Motor

High quality Amiko DM2400 DiSEqC Motor. Supports USALS and DiSEqC 1.2 Protocol.

Main Features:

  • DiSEqC 1.2 & USALS compliant
  • Plastic Gear Design
  • Drive dishes up to 120cm
  • Power through one single coaxial cable
  • Zero-Backlash Design for the highest precision

Specification:

  • DiSEqC 1.2 signal control
  • Compatible Receiver: Receiver with DiSEqC 1.2 or Interface Box
  • F-type Connection
  • Antenna Size Max 120 cm
  • Speed: 1.9° / sec (at 13V), 2.5° / sec (at 18V)
  • Elevation Angle: 25 ~ 75°
  • Input/Output Voltage: 13/18 V DC
  • Power Consumption: 50mA (Stand-by), 200mA (Normal), 350mA (Max.)
  • Satellite Positions: 60 positions
  • Azimuth Angle: 80° East ~ 80° West
  • Calibration Function: Yes ( Go to 0°)
  • Goto X Function
  • Manual East/West Buttons
  • Indicating Led (2 Colors)
  • Limit Protection: 1. Adjustable hardware limits, 2. Programmable software limits, 3. Current limit
  • Positioning Sensor: High Resolution Hall Effect Sensor
  • Weight (Mount): 3.1 Kg (Net) / 3.5 Kg (Gross)
  • Dimension (Mount): 345x168x110 mm (Gross)

$54.07

Original: $154.50

-65%
Amiko DM2400 H-H DiSEqC Motor—

$154.50

$54.07
